4-7kW PANELS: Residential Dual Axis Solar Tracker

astronomical 2 axis solar tracker

astronomical dual axis solar tracker

Chat Now

Request A Quote

Product Details

Category:

Mechanical

Tracking Type:

Dual Axis, Astronomical

Bracket Area:

Module Capacity:

4-7kW (8-12 Modules, 500-650W Each)

Module Size:

2100mm X 1300mm

Wind Resistance:

27m/s

Weight:

≥ 400kg

Material:

Q235 Steel (Painting/Hot Galvanizing)

Design Life:

≥ 25 Years

Category:

Electrical

Input Voltage:

24V DC

Tilt Angle:

30°

Tracking Range:

360°

Accuracy:

≤ 5°

Power Increase:

20 – 40% Vs. Repaired Installing

Category:

Environmental

Operating Temperature:

-40°C To +70°C

Protection Degree:

IP65

Anti-Corrosion:

Yes

Category:

Communications

Protocols:

RS485-MODBUS, Bluetooth

Remote Function:

Optional

GPS Positioning:

Optional

Highlight:

astronomical 2 axis solar tracker

astronomical dual axis solar tracker

Payment & Shipping Terms

6KW High-Duty 12-Panel Solar Tracking System Linear Actuator Slew Drive Controller Key Parts Included Optimal Solar Tracker

Chat Now

Jimmy 10 Panels 5kw Dual Axis Solar Panel Tracking System with Sun Tracker Bracket Efficient Sun Tracking Technology

Chat Now

3KW 6 Panel Solar Tracker System Heavy Duty Linear Actuator Slew Drive Controller Essential Parts for Optimal Solar Tracking

Chat Now

Optimal 1KW Dual Panel Solar Tracking System Linear Actuator Slew Drive Astro Controller Essential Key Components for Solar

Chat Now

86-752-91454392

jay@solartrackersystem.com

86--18806620218

Chat Now

Product Description

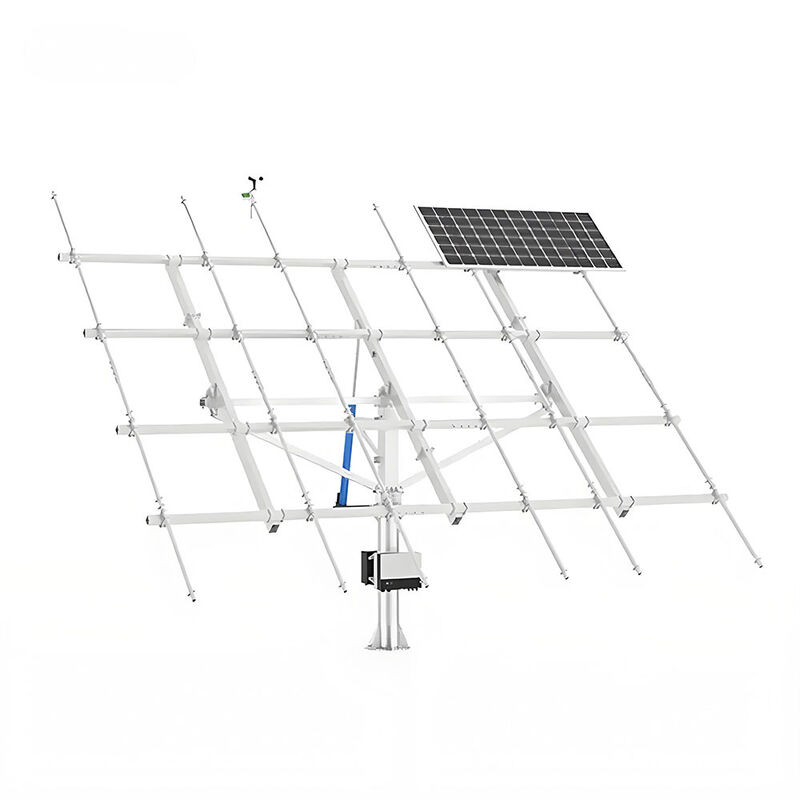

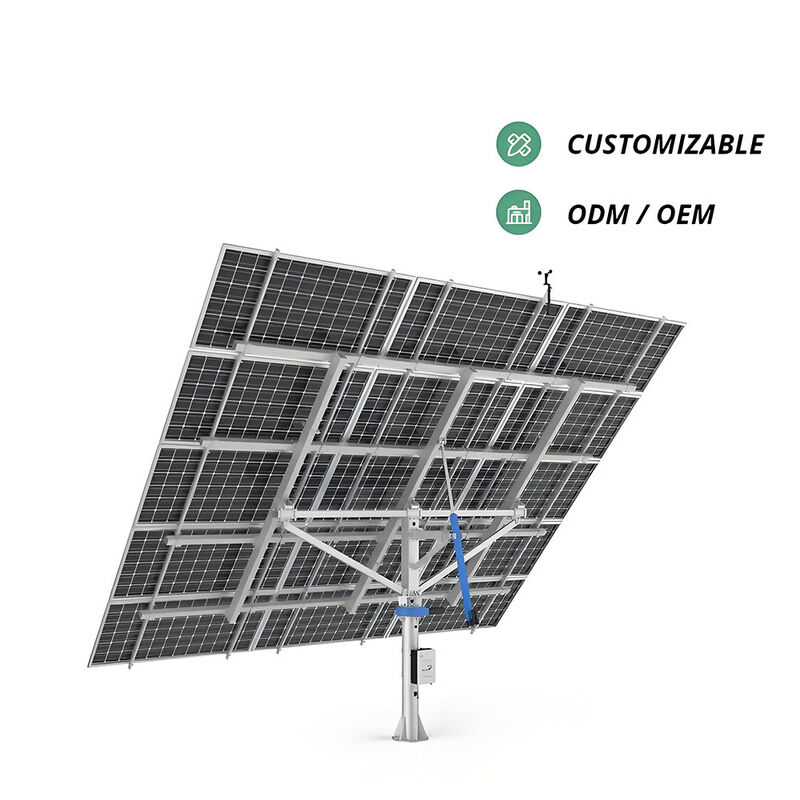

Residential Dual-Axis Solar Tracker (4-7kW)

Maximize your solar investment with our high-efficiency dual-axis tracking system. Designed to boost energy output by up to 40% compared to fixed installations, this system utilizes advanced astronomical algorithms to follow the sun precisely throughout the day.

Increased Efficiency: Dual-axis tracking for maximum solar capture.
Robust Construction: Built with Q235 steel for long-term durability.
Reliable Performance: IP65 protection and wide operating range (-40°C to +70°C).
Safety First: Wind protection up to 27m/s.

Product Attributes

FOB UnitSet

PackagingWooden box with bubble movie (for transportation security)

Technical Specifications

Category	Parameter	Detail
Mechanical	Module Capacity	4-7kW (8-12 modules)
Mechanical	Wind Resistance	27m/s
Electrical	Input Voltage	24V DC
Electrical	Power Increase	20 – 40%
Environmental	Temperature	-40°C to +70°C
Environmental	Protection	IP65
Communications	Protocols	RS485-MODBUS, Bluetooth
