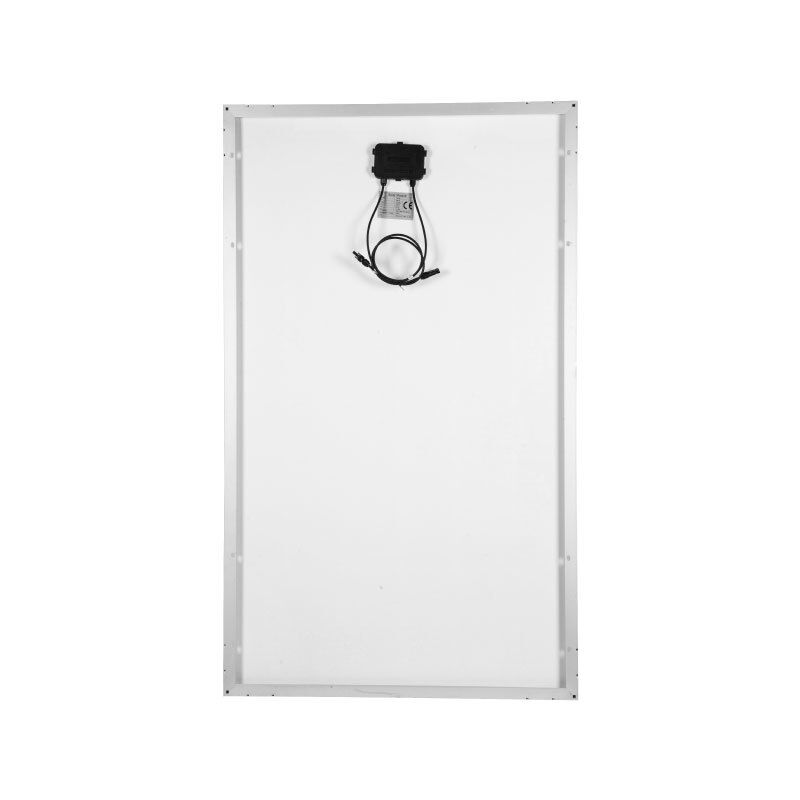

200W solar photovoltaic panel, monocrystalline photovoltaic module

200W solar photovoltaic panel, monocrystalline photovoltaic module

200w monocrystalline solar panels

200w monocrystalline photovoltaic module

Chat Now
Request A Quote
200W solar photovoltaic panel, monocrystalline photovoltaic module 200W solar photovoltaic panel, monocrystalline photovoltaic module 200W solar photovoltaic panel, monocrystalline photovoltaic module
Product Details
Parameter:
Maximum Power(W)
180W:
180W
190W:
190W
200W:
200W
Parameter:
Size(MM)
180W:
670*1480*30mm
190W:
670*1480*30mm
200W:
670*1480*30mm
Parameter:
Weight(KG)
180W:
13.5kg/pcs
190W:
13.5kg/pcs
200W:
13.5kg/pcs
Parameter:
Tolerance(%)
180W:
±3%
190W:
±3%
200W:
±3%
Parameter:
Open Circuit Voltage(V)
180W:
26.68
190W:
26.68
200W:
26.68
Parameter:
Maximum Power Voltage(V)
180W:
22.1
190W:
22.15
200W:
22.23
Parameter:
Maximum Power Current(A)
180W:
8.15
190W:
8.55
200W:
9
Parameter:
Short Circuit Current(A)
180W:
9.15
190W:
9.52
200W:
9.72
Parameter:
Module Efficiency(%)
180W:
19
190W:
19.5
200W:
20.2
Parameter:
Solar Cell Efficiency(%)
190W:
22.6
200W:
23
Parameter:
Series Fuse Rating(A)
180W:
15
190W:
15
200W:
15
Parameter:
Terminal Box
180W:
IP65
190W:
IP65
200W:
IP65
Parameter:
Maximum System Voltage(V)
180W:
DC1000
190W:
DC1000
200W:
DC1000
Parameter:
OperatingTemperature(℃)
180W:
-40℃---85℃
190W:
-40℃---85℃
200W:
-40℃---85℃
Highlight:

200w monocrystalline solar panels

,

200w monocrystalline photovoltaic module

Payment & Shipping Terms
RELATED PRODUCTS
Good price 300W solar photovoltaic panel, monocrystalline photovoltaic module online

300W solar photovoltaic panel, monocrystalline photovoltaic module

Chat Now
Good price 150W small-sized solar panel, monocrystalline photovoltaic module online

150W small-sized solar panel, monocrystalline photovoltaic module

Chat Now
Good price 450W solar power panel, standard photovoltaic panel online

450W solar power panel, standard photovoltaic panel

Chat Now
Good price 500W solar panel - monocrystalline single glass online

500W solar panel - monocrystalline single glass

Chat Now
CONTACT US
86-752-91454392
jay@solartrackersystem.com
86--18806620218
Chat Now
Product Description

200W High-Efficiency Monocrystalline Solar Module

Engineered for superior performance and durability, this 200W photovoltaic module utilizes advanced monocrystalline silicon technology. Featuring double-layer encapsulation with high-quality glass and EVA film, it is built to withstand extreme environmental conditions.

  • High Conversion Efficiency: Achieves solar cell efficiency above 23%.
  • Extreme Durability: Certified for wind loads of 2400pa and snow loads of 5400pa.
  • Optimized Power: Integrated bypass diodes minimize power drops caused by shading.
  • Robust Build: Features white tempered glass and a corrosion-resistant anodized aluminum frame.

Product Attributes

Material: Monocrystalline Silicon
Construction: Double-layer EVA / Tempered Glass
Frame: Anodized Aluminum
Standard: IP65 Terminal Box

Technical Specifications

Parameter180W190W200W
Size (mm)670*1480*30670*1480*30670*1480*30
Weight (kg)13.513.513.5
Max Power Voltage (V)22.122.1522.23
Max Power Current (A)8.158.559
Module Efficiency (%)1919.520.2
Operating Temp-40℃ to 85℃-40℃ to 85℃-40℃ to 85℃
