500W solar panel - monocrystalline single glass

500W solar panel - monocrystalline single glass

500w solar panel

500w solar panels

Chat Now
Request A Quote
500W solar panel - monocrystalline single glass 500W solar panel - monocrystalline single glass 500W solar panel - monocrystalline single glass 500W solar panel - monocrystalline single glass
Product Details
Parameter:
Maximum Power(W)
Value:
500W
Parameter:
Size(MM)
Value:
2098*1134*30mm
Parameter:
Weight(KG)
Value:
25kg/pcs
Parameter:
Tolerance(%)
Value:
±3%
Parameter:
Open Circuit Voltage(V)
Value:
45.94
Parameter:
Maximum Power Voltage(V)
Value:
38.28
Parameter:
Maximum Power Current(A)
Value:
13.07
Parameter:
Short Circuit Current(A)
Value:
14.12
Parameter:
Module Efficiency(%)
Value:
21
Parameter:
Solar Cell Efficiency(%)
Value:
23.3
Parameter:
Series Fuse Rating(A)
Value:
20
Parameter:
Terminal Box
Value:
IP65
Parameter:
Maximum System Voltage(V)
Value:
DC1000
Parameter:
OperatingTemperature(℃)
Value:
-40℃---85℃
Highlight:

500w solar panel

,

500w solar panels

Payment & Shipping Terms
RELATED PRODUCTS
Good price 300W solar photovoltaic panel, monocrystalline photovoltaic module online

300W solar photovoltaic panel, monocrystalline photovoltaic module

Chat Now
Good price 150W small-sized solar panel, monocrystalline photovoltaic module online

150W small-sized solar panel, monocrystalline photovoltaic module

Chat Now
Good price 450W solar power panel, standard photovoltaic panel online

450W solar power panel, standard photovoltaic panel

Chat Now
Good price 500W solar panel - monocrystalline single glass online

500W solar panel - monocrystalline single glass

Chat Now
CONTACT US
86-752-91454392
jay@solartrackersystem.com
86--18806620218
Chat Now
Product Description

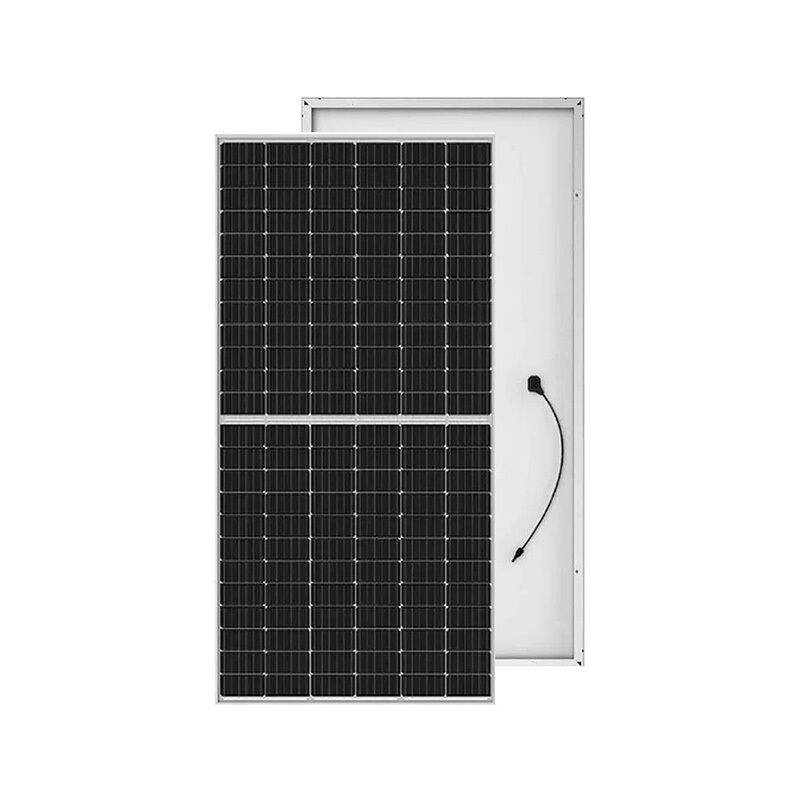

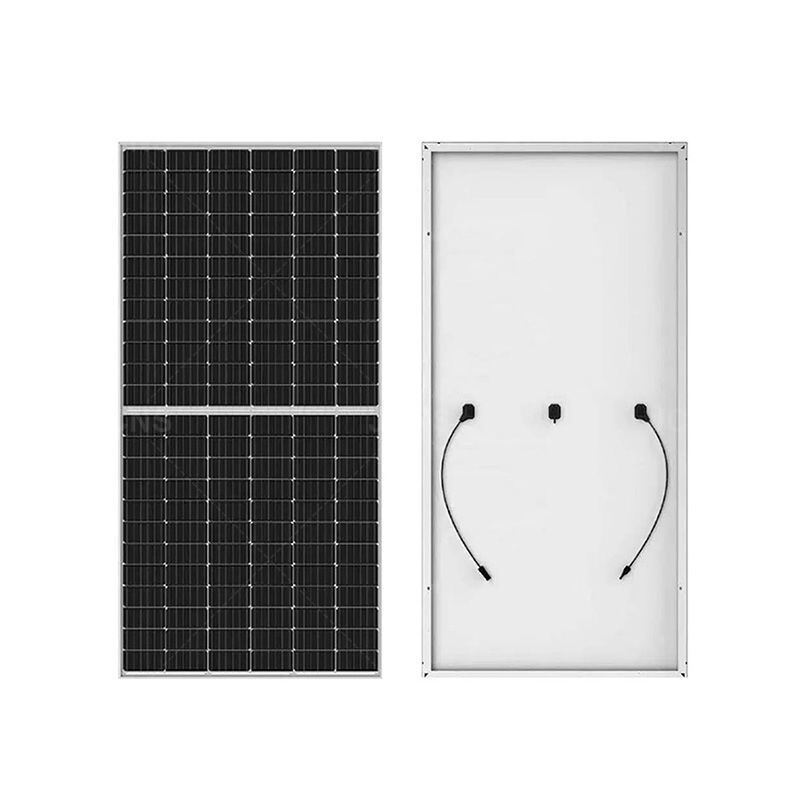

500W High-Efficiency Solar Photovoltaic Panel

Product Overview

This 500W solar photovoltaic panel is engineered for high-performance energy conversion. Utilizing renewable solar energy, it operates with minimal environmental impact, offering a sustainable, low-noise, and low-maintenance power solution.

  • High Efficiency: Solar cell conversion efficiency exceeding 23%.
  • Advanced Protection: Features bypass diodes to minimize power drops caused by shading.
  • Durable Construction: Built with white tempered glass, EVA resin, weather-proof film, and an anodized aluminum frame.
  • Versatile Application: Waterproof design, ideal for various grid-connected applications.

Product Attributes

FOB UnitPiece
Packaging & DeliveryNot specified

Technical Specifications

ParameterValue
Maximum Power500W
Dimensions2098*1134*30mm
Weight25kg/pcs
Tolerance±3%
Open Circuit Voltage45.94V
Max Power Voltage38.28V
Max Power Current13.07A
Short Circuit Current14.12A
Module Efficiency21%
Solar Cell Efficiency23.3%
Series Fuse Rating20A
Terminal BoxIP65
Max System VoltageDC1000V
Operating Temperature-40℃ to 85℃
