614.4V 100Ah High Voltage Battery Energy Storage Cabinet 61.44Kwh Lithium HV Battery Home Use

100ah power wall battery

100ah home energy storage battery

Chat Now

Request A Quote

Product Details

Parameter:

Configuration

Value:

Control Box + Battery Pack: 1P32S X 6

Parameter:

Rated Capacity (Ah)

Value:

100Ah

Parameter:

Rated Voltage (V)

Value:

614.4V

Parameter:

Rated Energy (kWh)

Value:

61.44Kwh

Parameter:

Rated Charge/discharge Rate (C)

Value:

0.5

Parameter:

Operating Voltage Range (V)

Value:

480-700.8V

Parameter:

Charge And Discharge Current

Value:

0.2C/0.33C

Parameter:

Charge And Discharge Cut-off Voltage

Value:

480/700.8

Parameter:

Maximum Continuous Charge Current

Value:

50A

Parameter:

Maximum Continuous Discharge Current

Parameter:

Recommended SOC Range

Value:

10%-95%

Parameter:

Charging Operating Temperature

Value:

0°C~50°C

Parameter:

Discharging Operating Temperature

Value:

—20°C~50°C

Parameter:

Short-term Storage (within One Month)

Value:

—20°C~45°C

Parameter:

Long-term Storage (within One Year)

Value:

0°C~35°C

Parameter:

Storage Humidity

Value:

5%~90%

Parameter:

Cabinet Dimensions (LxWxH)

Value:

568*852*1550mm

Parameter:

Weight(kg)

Value:

≈680Kg

Parameter:

Cycle Lifetime

Value:

6000（90%DOD 70%EOL）

Highlight:

100ah power wall battery

100ah home energy storage battery

Payment & Shipping Terms

3.8V 2350mAh - 2400mAh Mobile Phone Battery

Chat Now

3.7V 4170mAh Battery Packs Rechargeable Tablet Battery

Chat Now

76.8V 30Ah Battery Packs Power Cleaning Vehicle Battery

Chat Now

76.8V 30Ah Battery Packs Two Wheel Electric Motorcycle Battery

Chat Now

86-752-91454392

jay@solartrackersystem.com

86--18806620218

Chat Now

Product Description

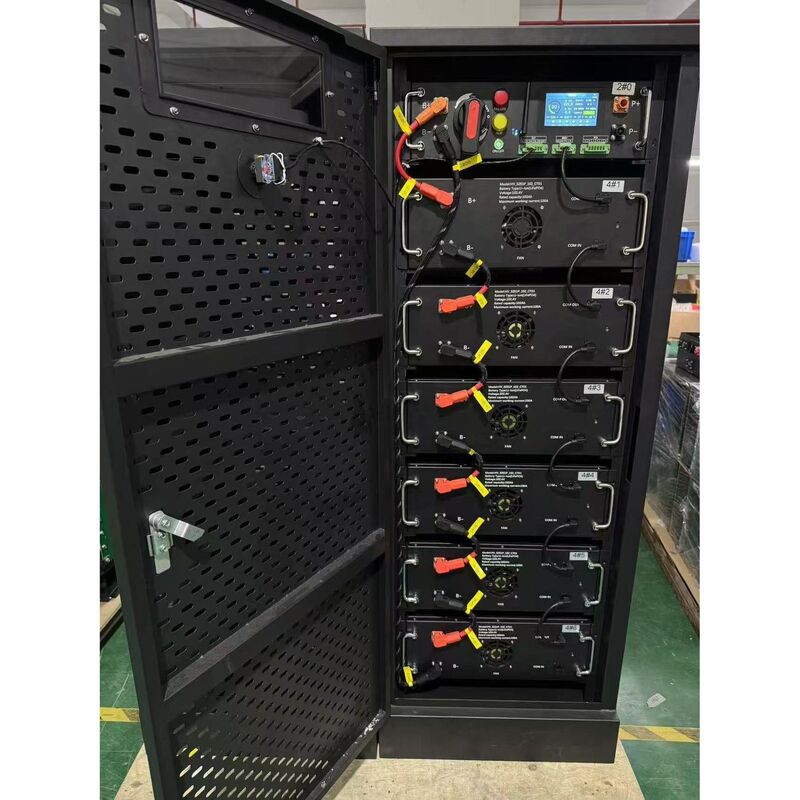

614.4V 100Ah High Voltage Battery Energy Storage Cabinet (61.4Kwh)

This high-performance energy storage solution is engineered for robust residential and light commercial applications. Featuring a modular 1P32S configuration, this cabinet delivers reliable power density and long-term cycle stability for advanced energy management.

Key Advantages

High Capacity: 61.44Kwh energy storage for extended backup.
Long Service Life: Rated for 6000 cycles at 90% DOD.
Wide Operating Range: Optimized for extreme temperatures from -20°C to 50°C.
High Voltage Efficiency: 614.4V nominal voltage for superior power conversion.

Product Attributes

Packaging & Delivery

Not specified

System Type

High Voltage Storage Cabinet

Application

Home/Residential Use

Technical Specifications

Parameter	Specification
Configuration	Control Box + Battery Pack: 1P32S x 6
Rated Capacity	100Ah
Rated Voltage	614.4V
Rated Energy	61.44Kwh
Max Continuous Current	50A (Charge/Discharge)
Dimensions	5688521550mm
Weight	≈680Kg
Cycle Lifetime	6000 (90% DOD 70% EOL)
