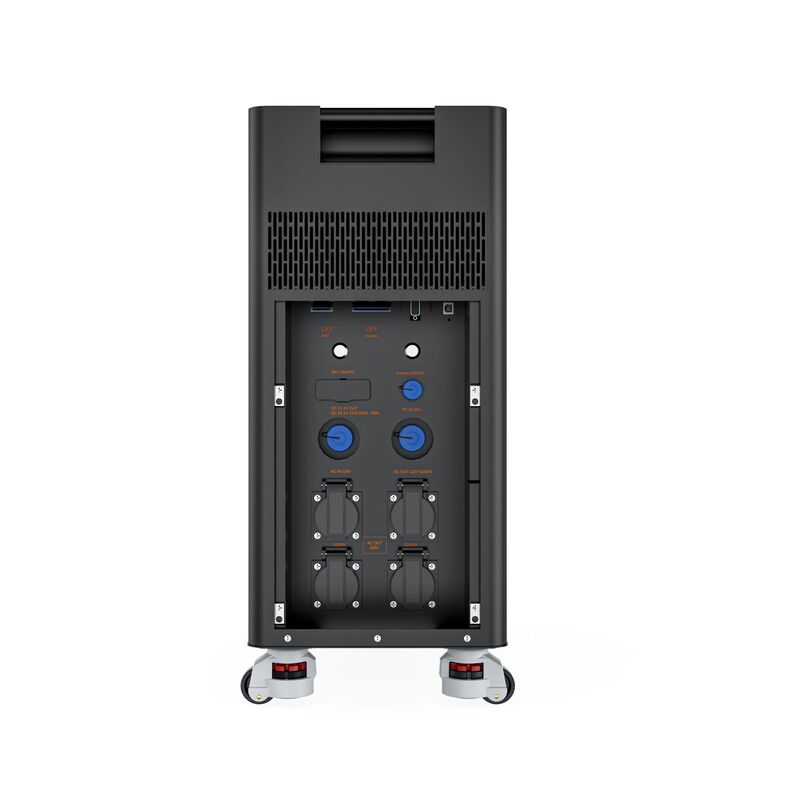

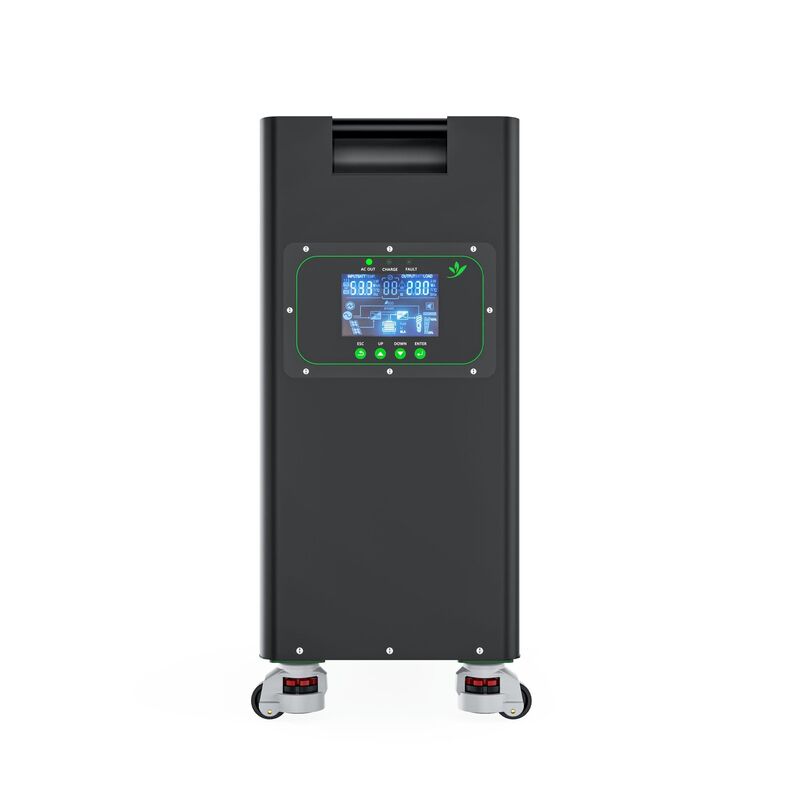

51.2V 105Ah 5.37Kwh with 6200w hybrid integrated all in one for residential solar home

51.2V 105Ah 5.37Kwh with 6200w hybrid integrated all in one for residential solar home

51.2v power wall battery

51.2v home energy storage battery

all in one power wall battery

Chat Now
Request A Quote
51.2V 105Ah 5.37Kwh with 6200w hybrid integrated all in one for residential solar home 51.2V 105Ah 5.37Kwh with 6200w hybrid integrated all in one for residential solar home 51.2V 105Ah 5.37Kwh with 6200w hybrid integrated all in one for residential solar home 51.2V 105Ah 5.37Kwh with 6200w hybrid integrated all in one for residential solar home 51.2V 105Ah 5.37Kwh with 6200w hybrid integrated all in one for residential solar home 51.2V 105Ah 5.37Kwh with 6200w hybrid integrated all in one for residential solar home
Product Details
Parameter:
Rated Energy
Value:
5.37Kwh
Parameter:
Nominal Capacity
Value:
105Ah
Parameter:
Nominal Voltage
Value:
51.2V
Parameter:
Output Power
Value:
6200W
Parameter:
Output Voltage
Value:
230Vac±5%
Parameter:
Output Frequency
Value:
50Hz/60Hz
Parameter:
Mains Charging Current
Value:
DC 80A MAX
Parameter:
Load-bearing Motor Energy
Value:
4HP
Parameter:
PV Maximum Open-Circuit
Value:
500Vdc
Parameter:
PV Operating Voltage Range
Value:
120Vdc~500Vdc
Parameter:
Maximum PV Input Power
Value:
6000W
Parameter:
Maximum PV Input Current
Value:
22A
Parameter:
PV Charging Current
Value:
DC 100A MAX
Parameter:
Hybrid Charging Current
Parameter:
Cycle Life
Value:
6000+
Parameter:
Product Size
Value:
500*250*640mm
Parameter:
Weight
Value:
61kg
Highlight:

51.2v power wall battery

,

51.2v home energy storage battery

,

all in one power wall battery

Payment & Shipping Terms
RELATED PRODUCTS
Good price 3.8V 2350mAh - 2400mAh Mobile Phone Battery online

3.8V 2350mAh - 2400mAh Mobile Phone Battery

Chat Now
Good price 3.7V 4170mAh Battery Packs Rechargeable Tablet Battery online

3.7V 4170mAh Battery Packs Rechargeable Tablet Battery

Chat Now
Good price 76.8V 30Ah Battery Packs Power Cleaning Vehicle Battery online

76.8V 30Ah Battery Packs Power Cleaning Vehicle Battery

Chat Now
Good price 76.8V 30Ah Battery Packs Two Wheel Electric Motorcycle Battery online

76.8V 30Ah Battery Packs Two Wheel Electric Motorcycle Battery

Chat Now
CONTACT US
86-752-91454392
jay@solartrackersystem.com
86--18806620218
Chat Now
Product Description

Multifunctional Hybrid Inverter/Charger (5.37Kwh)

This high-performance unit integrates a pure sine wave inverter, solar charger, and battery charger into one seamless system. Designed for versatility, it supports grid-connected, off-grid, and energy storage modes with intelligent power management.

Key Advantages:

  • Intelligent Charging: Advanced algorithm for optimal battery health.
  • Robust Protection: Built-in safety for overload, overheating, and short circuits.
  • Smart Monitoring: LCD display with optional WiFi/GPRS remote connectivity.
  • Scalable Power: Supports parallel connection for expanded capacity.

Product Attributes

FOB Unit: Set
MOQ: 0
FOB Price: N/A

Technical Specifications

ParameterValue
Rated Energy5.37Kwh
Nominal Capacity105Ah
Nominal Voltage51.2V
Output Power6200W
Output Voltage230Vac±5%
Output Frequency50Hz/60Hz
PV Max Open-Circuit500Vdc
Cycle Life6000+
Dimensions500*250*640mm
Weight61kg
