7680Wh Solar Energy Battery Storage 300AH 25.60V Solar PV And Battery Storage

7680wh solar energy battery storage

solar energy battery storage 300ah

25.60v solar pv and battery storage

Chat Now

Request A Quote

Product Details

Nominal Voltage:

25.60V

Nominal Capacity:

300AH

Charging Voltage:

29.2V

Charging Current:

60A (maximum 100A)

Discharging Current:

Continuous Discharging Current 200A

Instantaneous Current:

250A/1000MS

Discharging Cut-off Voltage:

20V

Finished Product Resistance:

≤ 120mΩ

Charging Temperature:

0~45℃

Discharging Temperature:

-20℃~55℃

Storage Temperature:

-20℃~45℃

Finished Product Weight:

Approximately 75KG

Rated Capacity:

300Ah

Minimum Capacity:

296.0Ah

Energy:

7680Wh

Open Voltage:

20.0V-29.2V

Load Voltage:

≥42.0V

Internal Impedance:

≤80mΩ

Charge Voltage:

29.20V

Standard Charge Current:

60.0A

Max Charge Current:

100.0A

Standard Discharge Current:

60.0A

Max Discharge Current:

200.0A

Discharge Cut-off Voltage:

20.0V

Operating Temperature:

+10~+40℃ (Charge), -20~+60℃ (Discharge)

Weight:

About 75KG

Communication Mode:

RS232、RS485

Highlight:

7680wh solar energy battery storage

solar energy battery storage 300ah

25.60v solar pv and battery storage

Payment & Shipping Terms

3.8V 2350mAh - 2400mAh Mobile Phone Battery

Chat Now

3.7V 4170mAh Battery Packs Rechargeable Tablet Battery

Chat Now

76.8V 30Ah Battery Packs Power Cleaning Vehicle Battery

Chat Now

76.8V 30Ah Battery Packs Two Wheel Electric Motorcycle Battery

Chat Now

86-752-91454392

jay@solartrackersystem.com

86--18806620218

Chat Now

Product Description

8kWh (25.6V 300Ah) Photovoltaic Energy Storage Battery

This high-capacity energy storage solution is designed for solar power generation systems. It allows for the efficient storage of excess electricity generated during the day, ensuring a reliable power supply for households during the night or inclement weather, ultimately reducing electricity costs.

Key Benefits

Efficient Energy Utilization: Maximize solar investment by storing surplus power.
Reliable Backup: Ensures power availability during night-time or rainy days.
Cost Optimization: Significantly reduces reliance on the grid and lowers electricity expenses.

Product Attributes

FOB Unitpiece

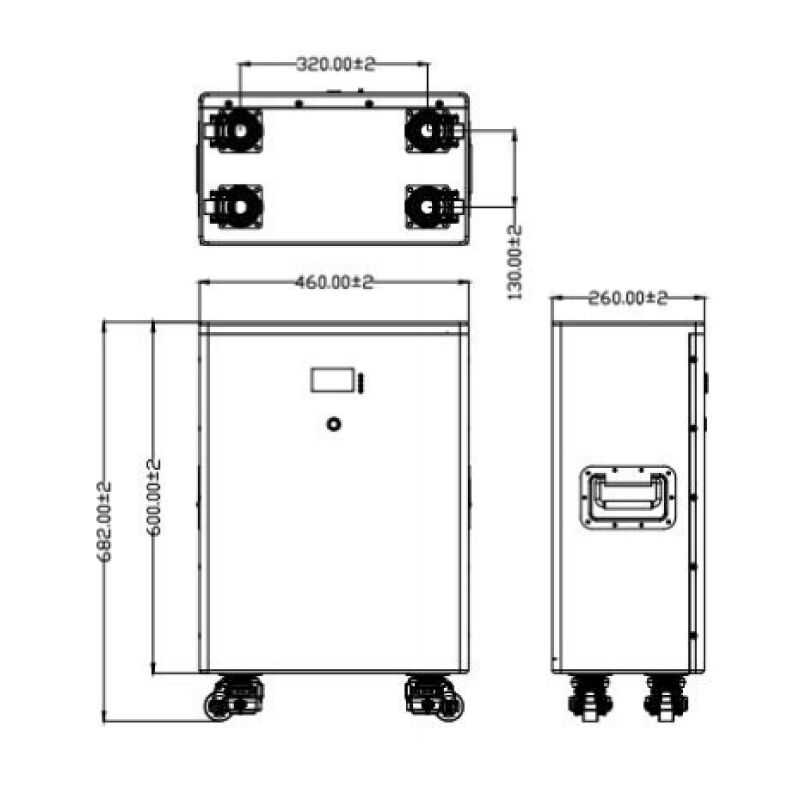

Packaging Size800*540*350mm

Technical Specifications

Parameter	Detail 1	Detail 2
Nominal Voltage	25.6V	25.60V
Capacity	300AH	300Ah
Weight	Approx. 75KG	Approx. 75KG
Max Charge Current	100A	100.0A
Max Discharge Current	200A	200.0A
Communication	-	RS232, RS485
