Place of Origin:
Guangdong, China
Brand Name:
JIMMY
Model Number:
Dual Axis
item | value |

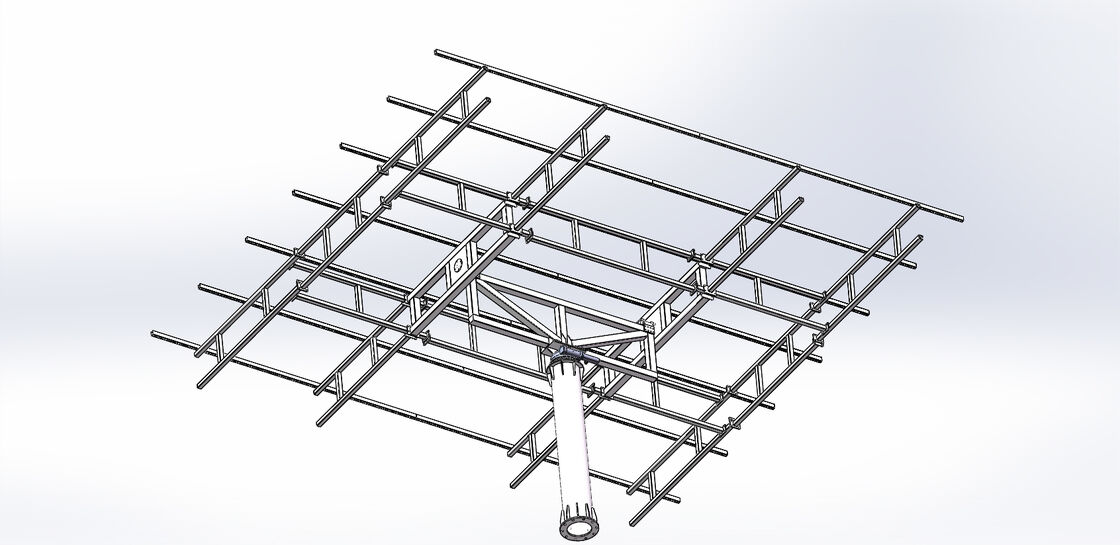

Product name: | dual axis solar tracking system |
Control mode: | Time + GPS Control |
Tracking accuracy: | 0.1·°-2° (Adjustable) |
Model Number | Dual Axis |
Motor: | 24V gear motor |
Power consumption: | 3 kwh/set/year |
Working temperature: | -40℃ - +75℃ |
Total power: | 5.0kW-10.0kW |
Weight: | 250 - 350kgs |
Output torque: | 13650NM |
Brackets material: | Hot-dipped galvanized steel, Zinc layer thickness≥65μm |
Max. wind resistance: | 24m/s in running state, 40m/s in wind protect state |
Azimuth angle tracking range: | ±50° |
