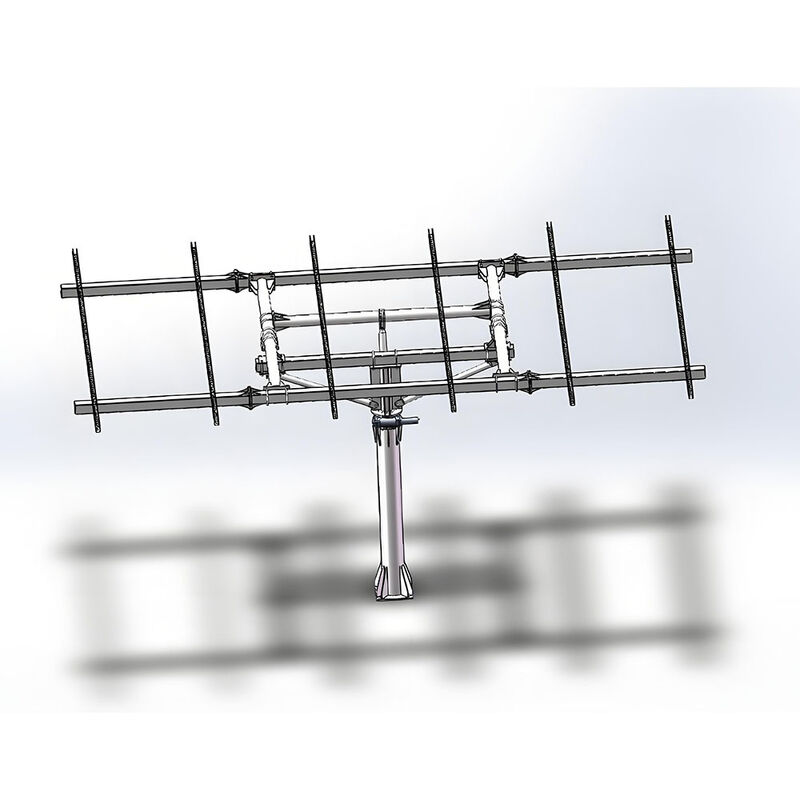

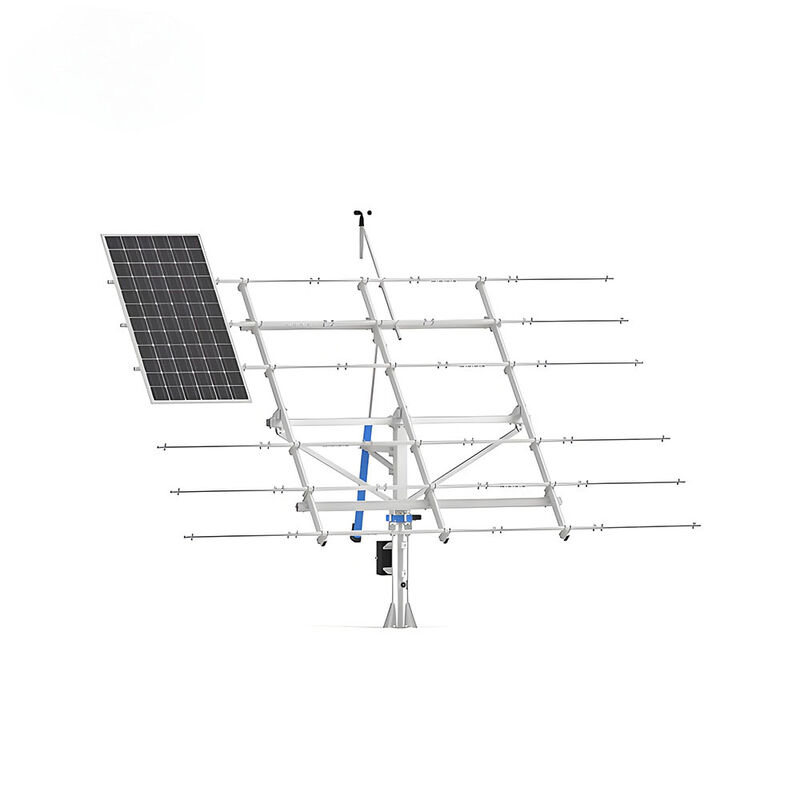

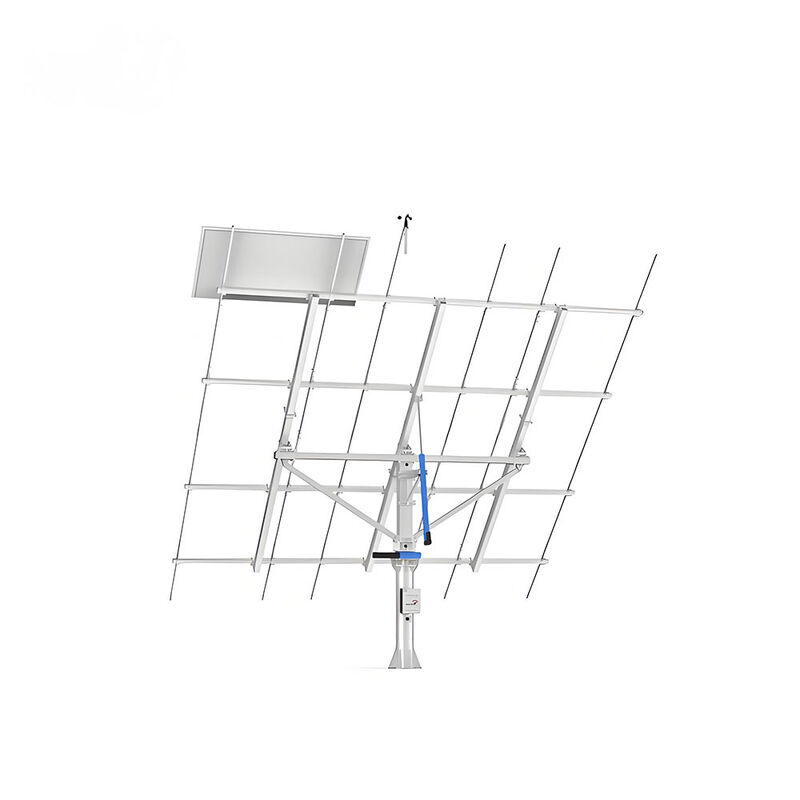

Dual Axis-40P: 40-Panel Heavy Duty 2-Axis Tracker

Dual Axis-40P: 40-Panel Heavy Duty 2-Axis Tracker

40p solar tracker

40p solar trackers

Chat Now
Request A Quote
Dual Axis-40P: 40-Panel Heavy Duty 2-Axis Tracker Dual Axis-40P: 40-Panel Heavy Duty 2-Axis Tracker Dual Axis-40P: 40-Panel Heavy Duty 2-Axis Tracker Dual Axis-40P: 40-Panel Heavy Duty 2-Axis Tracker Dual Axis-40P: 40-Panel Heavy Duty 2-Axis Tracker
Product Details
Parameter:
Tracking Type
Value:
Dual Axis
Parameter:
Module Number
Value:
40
Parameter:
Module Size
Value:
1650 Mm × 992 Mm
Parameter:
Bracket Location
Value:
66 M2
Parameter:
Weight
Value:
≥ 2360 Kg
Parameter:
Material
Value:
Q235 Steel, Hot-dip Galvanized
Parameter:
Design Life
Value:
≥ 25 Years
Parameter:
Power Usage
Value:
≤ 0.5 KWh
Parameter:
Tracking Accuracy
Value:
≤ 1°
Parameter:
Operating Temperature
Value:
-40°C To +70°C
Parameter:
Protection Level
Value:
IP65
Parameter:
Interface
Value:
RS485-MODBUS
Parameter:
Certifications
Value:
CE, CQC, ISO9001, ISO14001, OHSAS18001
Highlight:

40p solar tracker

,

40p solar trackers

Payment & Shipping Terms
RELATED PRODUCTS
Good price 6KW High-Duty 12-Panel Solar Tracking System Linear Actuator Slew Drive Controller Key Parts Included Optimal Solar Tracker online

6KW High-Duty 12-Panel Solar Tracking System Linear Actuator Slew Drive Controller Key Parts Included Optimal Solar Tracker

Chat Now
Good price Jimmy 10 Panels 5kw Dual Axis Solar Panel Tracking System with Sun Tracker Bracket Efficient Sun Tracking Technology online

Jimmy 10 Panels 5kw Dual Axis Solar Panel Tracking System with Sun Tracker Bracket Efficient Sun Tracking Technology

Chat Now
Good price 3KW 6 Panel Solar Tracker System Heavy Duty Linear Actuator Slew Drive Controller Essential Parts for Optimal Solar Tracking online

3KW 6 Panel Solar Tracker System Heavy Duty Linear Actuator Slew Drive Controller Essential Parts for Optimal Solar Tracking

Chat Now
Good price Optimal 1KW Dual Panel Solar Tracking System Linear Actuator Slew Drive Astro Controller Essential Key Components for Solar online

Optimal 1KW Dual Panel Solar Tracking System Linear Actuator Slew Drive Astro Controller Essential Key Components for Solar

Chat Now
CONTACT US
86-752-91454392
jay@solartrackersystem.com
86--18806620218
Chat Now
Product Description

Dual Axis-40P Heavy-Duty Solar Tracker

Boost your solar yield by up to 40% with the Dual Axis-40P. This heavy-duty 2-axis tracker for 40 panels delivers precise, reliable sun tracking designed for industrial-scale efficiency.

Key Benefits

  • ✅ Increased Yield: Maximize energy capture with high-precision dual-axis tracking.
  • ✅ Rugged Durability: Constructed with hot-dip galvanized Q235 steel for a 25+ year design life.
  • ✅ Smart Protection: Integrated weather protection capable of withstanding winds up to 17 m/s.
  • ✅ Precision Engineering: Azimuth range of -120° to +120° and elevation of 0° to 60°.
Unit: Per set
Technical Support: CAD designs, datasheets, and wiring layouts

Technical Specifications

Parameter Value
Tracking typeDual axis
Module number40
Module size1650 mm × 992 mm
Bracket location66 m2
Weight≥ 2360 kg
MaterialQ235 steel, hot-dip galvanized
Design life≥ 25 years
Power usage≤ 0.5 kWh
Tracking accuracy≤ 1°
Operating temperature-40°C to +70°C
Protection LevelIP65
InterfaceRS485-MODBUS
CertificationsCE, CQC, ISO9001, ISO14001, OHSAS18001
