Home > Products > Solar Trackers >

Single Axis-30P: 30-Panel Solar Panel Tracking Mount

single axis solar tracker

single axis solar trackers

Chat Now

Request A Quote

Product Details

Category:

Mechanical

Details:

Single Axis Tracking, ~50m Two Bracket Location, ≥750kg Weight, Q235 Steel With Hot-dip Galvanizing, Supports 30 × 1650x992mm Panels, 25-year Design Life.

Category:

Electrical

Details:

≤ 0.25 KWh Consumption, -45° To +45° Tracking Range, Fixed 20° Tilt, ≤ 1° Tracking Accuracy.

Category:

Environmental

Details:

-40°C To +70°C Temperature Range, IP65 Dust/water Protection, Anti-corrosion Design.

Category:

Communications

Details:

RS485-MODBUS, Optional GPS Positioning, Remote Procedure Capacity.

Category:

Safety & Certifications

Details:

CE, CQC, ISO9001, ISO14001, OHSAS18001.

Highlight:

single axis solar tracker

single axis solar trackers

Payment & Shipping Terms

6KW High-Duty 12-Panel Solar Tracking System Linear Actuator Slew Drive Controller Key Parts Included Optimal Solar Tracker

Chat Now

Jimmy 10 Panels 5kw Dual Axis Solar Panel Tracking System with Sun Tracker Bracket Efficient Sun Tracking Technology

Chat Now

3KW 6 Panel Solar Tracker System Heavy Duty Linear Actuator Slew Drive Controller Essential Parts for Optimal Solar Tracking

Chat Now

Optimal 1KW Dual Panel Solar Tracking System Linear Actuator Slew Drive Astro Controller Essential Key Components for Solar

Chat Now

86-752-91454392

jay@solartrackersystem.com

86--18806620218

Chat Now

Product Description

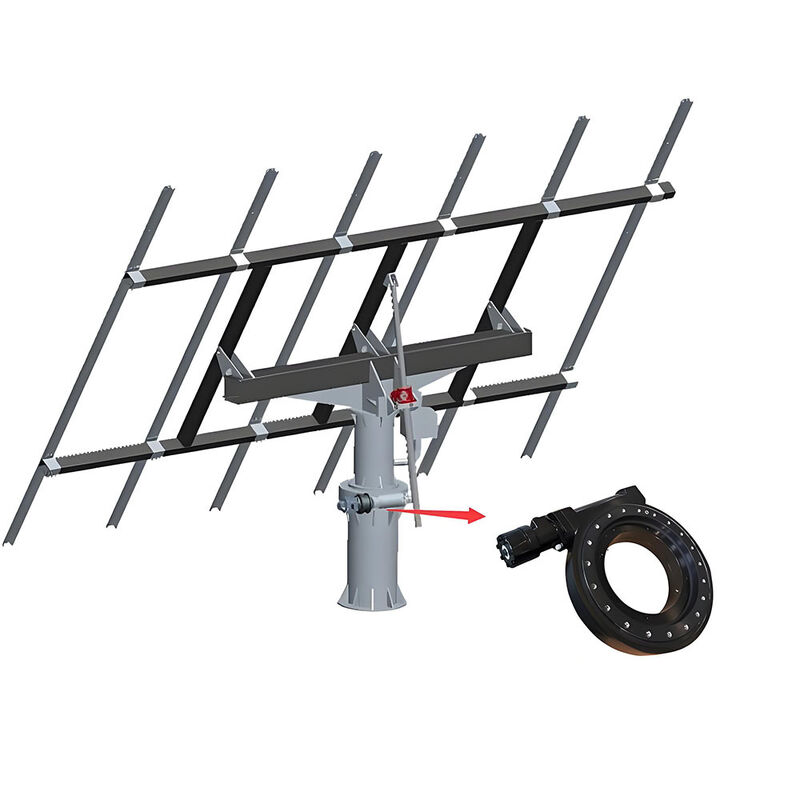

Single Axis-30P Solar Tracking Mount

Maximize your solar energy with the Single Axis-30P. This rugged 30-panel mount tracks the sun to boost yields for any project in any environment. Engineered for tough reliability, this system helps you get the most from your solar panel investment.

Key Advantages

High-efficiency single-axis tracking technology
Rugged Q235 steel construction with hot-dip galvanizing
25-year design life for long-term reliability
IP65 protection for harsh environmental conditions

Product Attributes

FOB Unit

Set

Packaging

Bubble film packaging

MOQ

Not specified

Technical Specifications

Category	Specifications
Mechanical	Single axis, ~50m length, ≥750kg, Q235 steel, 30x (1650x992mm) panels, 25yr life
Electrical	≤0.25 kWh consumption, -45° to +45° range, 20° tilt, ≤1° accuracy
Environmental	-40°C to +70°C, IP65 protection, anti-corrosion
Communications	RS485-MODBUS, GPS positioning, remote control
Safety/Certifications	CE, CQC, ISO9001, ISO14001, OHSAS18001
