Dual Axis-24P: 24-Panel Dual Axis PV Tracking System

Dual Axis-24P: 24-Panel Dual Axis PV Tracking System

communication solar tracker

communication solar trackers

Chat Now
Request A Quote
Dual Axis-24P: 24-Panel Dual Axis PV Tracking System Dual Axis-24P: 24-Panel Dual Axis PV Tracking System Dual Axis-24P: 24-Panel Dual Axis PV Tracking System Dual Axis-24P: 24-Panel Dual Axis PV Tracking System Dual Axis-24P: 24-Panel Dual Axis PV Tracking System
Product Details
Parameter:
Tracking Type
Value:
Dual Axis (azimuth: -120° To +120°, Altitude: 0° To 60°)
Parameter:
Number Of Panels
Value:
24
Parameter:
Panel Power
Value:
250 – 300W Per Panel
Parameter:
Panel Dimension
Value:
1650mm X 992mm
Parameter:
Bracket Area
Value:
40 M²
Parameter:
Material
Value:
Q235 Steel, Hot-dip Galvanized
Parameter:
Weight
Value:
Approx. 1,150 Kg
Parameter:
Design Life
Value:
≥ 25 Years
Parameter:
Power Consumption
Value:
≤ 0.5 KWh/day
Parameter:
Input Voltage
Value:
AC 220V, 50/60 Hz
Parameter:
Tracking Precision
Value:
≤ 1°
Parameter:
Operating Temperature
Value:
-40°C To +70°C
Parameter:
IP Rating
Value:
IP65
Parameter:
Communication
Value:
RS485-MODBUS, Optional 4G/WiFi, SCADA Integration
Highlight:

communication solar tracker

,

communication solar trackers

Payment & Shipping Terms
RELATED PRODUCTS
Good price 6KW High-Duty 12-Panel Solar Tracking System Linear Actuator Slew Drive Controller Key Parts Included Optimal Solar Tracker online

6KW High-Duty 12-Panel Solar Tracking System Linear Actuator Slew Drive Controller Key Parts Included Optimal Solar Tracker

Chat Now
Good price Jimmy 10 Panels 5kw Dual Axis Solar Panel Tracking System with Sun Tracker Bracket Efficient Sun Tracking Technology online

Jimmy 10 Panels 5kw Dual Axis Solar Panel Tracking System with Sun Tracker Bracket Efficient Sun Tracking Technology

Chat Now
Good price 3KW 6 Panel Solar Tracker System Heavy Duty Linear Actuator Slew Drive Controller Essential Parts for Optimal Solar Tracking online

3KW 6 Panel Solar Tracker System Heavy Duty Linear Actuator Slew Drive Controller Essential Parts for Optimal Solar Tracking

Chat Now
Good price Optimal 1KW Dual Panel Solar Tracking System Linear Actuator Slew Drive Astro Controller Essential Key Components for Solar online

Optimal 1KW Dual Panel Solar Tracking System Linear Actuator Slew Drive Astro Controller Essential Key Components for Solar

Chat Now
CONTACT US
86-752-91454392
jay@solartrackersystem.com
86--18806620218
Chat Now
Product Description

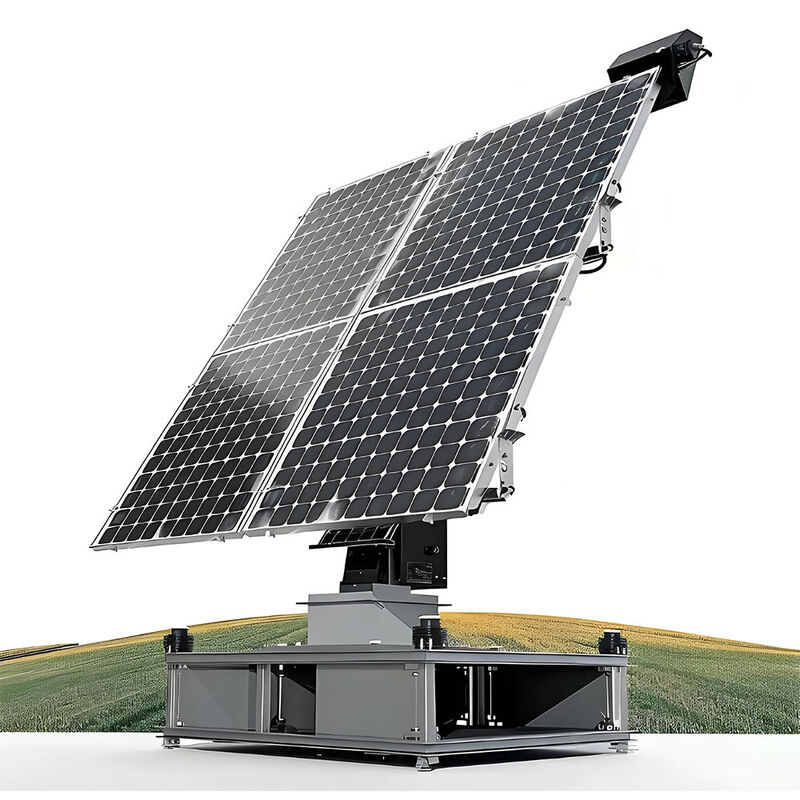

Dual Axis-24P Solar Tracking System

Boost your solar yield by up to 40% with the Dual Axis-24P. This rugged 24-panel tracker offers intelligent, high-performance sun tracking designed for maximum efficiency.

  • Dual-Axis Precision: Optimal sun tracking for increased energy harvest.
  • Rugged Build: Constructed with hot-dip galvanized Q235 steel for long-term durability.
  • Smart Monitoring: Features remote monitoring capabilities and SCADA integration.
  • Weather Resistant: IP65 protection rating ensures reliable performance in harsh environments.
  • Application: Ideal for utility-scale solar farms and commercial installations.

Product Attributes

FOB Unit: set
Product MOQ: Not specified
FOB Price: 0
Packaging & Delivery: Not specified

Technical Specifications

ParameterDetail
Tracking TypeDual axis (azimuth: -120° to +120°, altitude: 0° to 60°)
Number of Panels24
Panel Power250 – 300W per panel
Panel Dimension1650mm x 992mm
Bracket Area40 m²
MaterialQ235 steel, hot-dip galvanized
Weightapprox. 1,150 kg
Design Life≥ 25 years
Power Consumption≤ 0.5 kWh/day
Input VoltageAC 220V, 50/60 Hz
Tracking Precision≤ 1°
Operating Temp-40°C to +70°C
IP RatingIP65
CommunicationRS485-MODBUS, optional 4G/WiFi, SCADA integration
